VARIO GT 24 Column Formwork in action
-

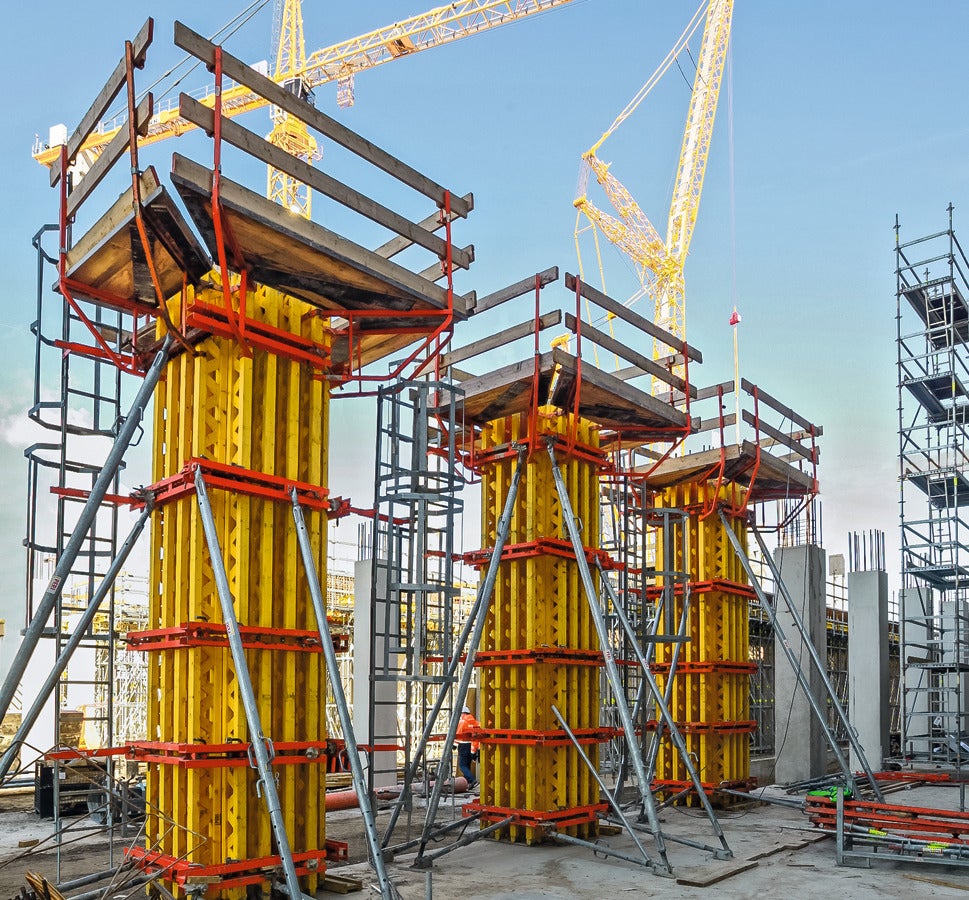

![to match rectangular and square column cross-sections of all sizes.]( "Continuously adaptable")
Continuously adaptableto match rectangular and square column cross-sections of all sizes.
-

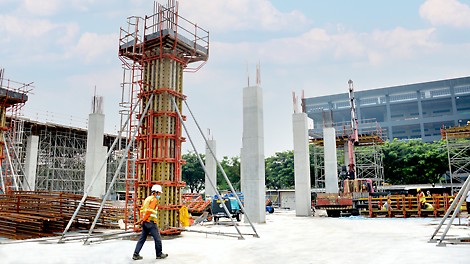

![through project-specific constructions with any type of formlining.]( "For architectural concrete surfaces")
For architectural concrete surfacesthrough project-specific constructions with any type of formlining.
-

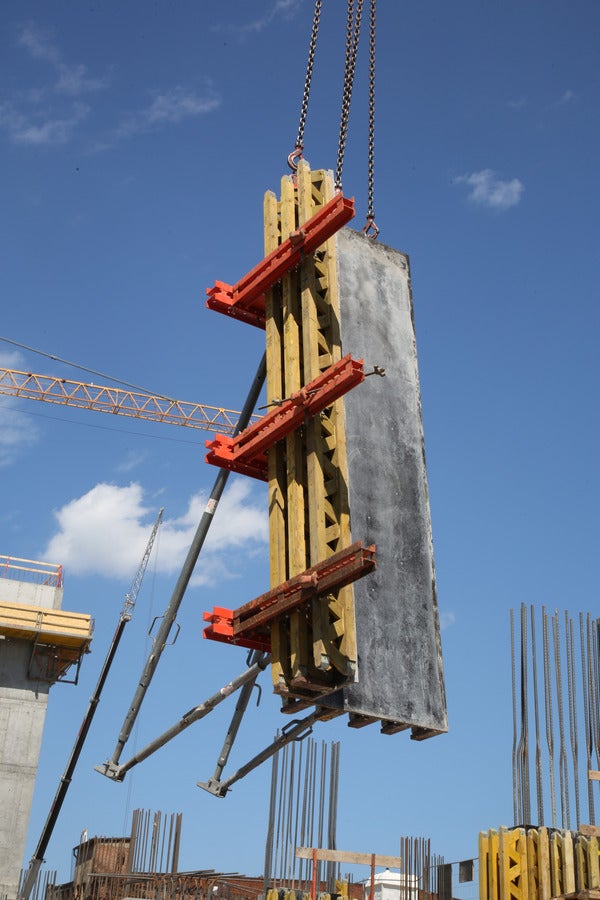

![through individual arrangements of formwork girders and steel walers.]( "For high concrete pressures")
For high concrete pressuresthrough individual arrangements of formwork girders and steel walers.
Product Data Sheet
System type
Column Formwork
Dimensions
Maximum element dimension: from 20 x 20 cm to 80 x 120 cm, in a 30 cm height grid,
Element heights: Freely selectable,
Realizable column cross sections: Rectangular, square, conical
Fresh concrete pressure
100kN/m²
Material
Wood and steel
Fulfilled standard
Line 7 according to DIN 18202
Tie technology
DW 15 anchor technology for the guying on the outside corner
Safety
Scaffold bracket GB 80
