PERI UP Flex Reinforcement Scaffolding in action
-
Simple to plan

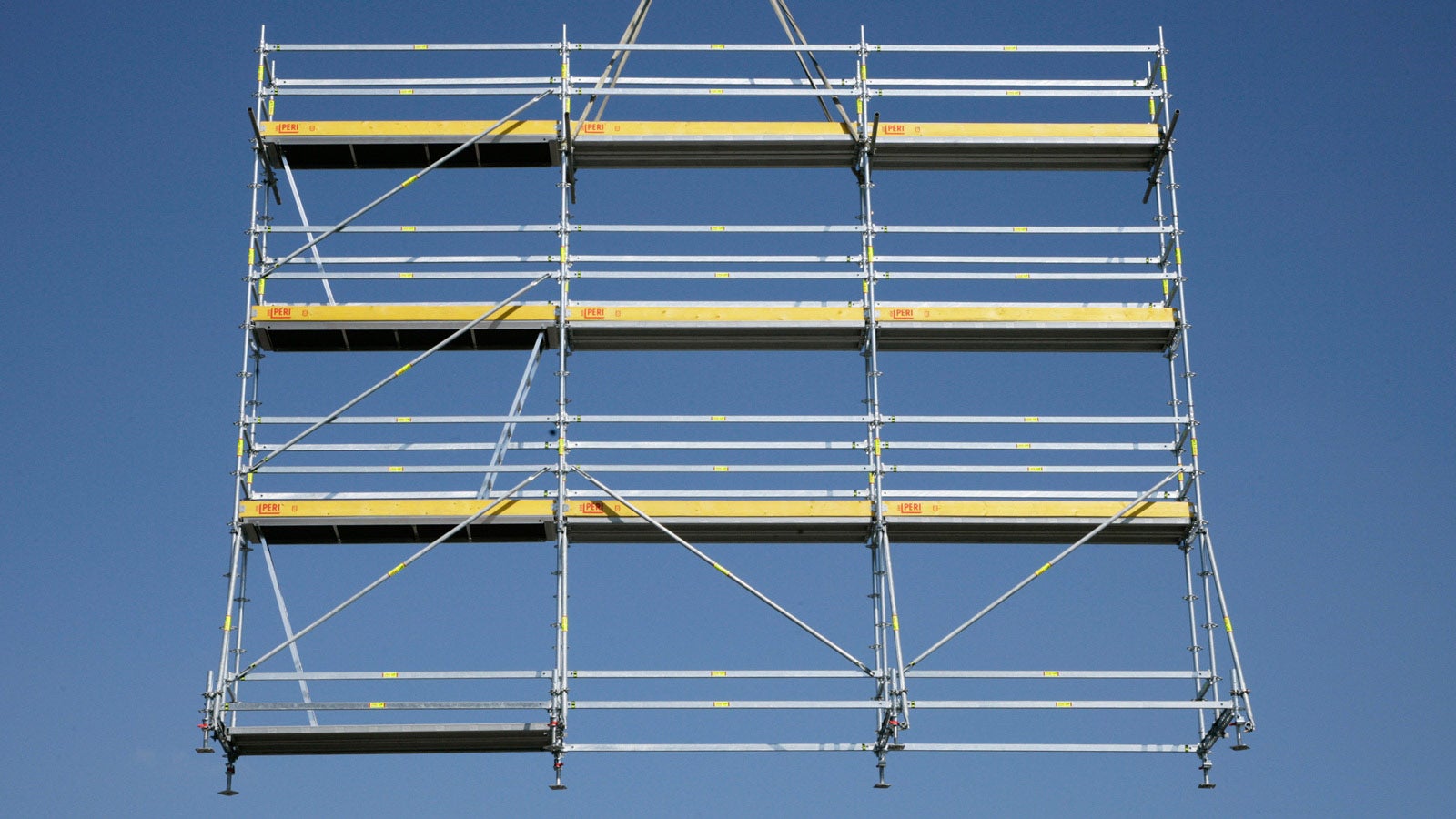

Fast determination of material requirements by means of prefabricated units.
-
Can be realised in large units

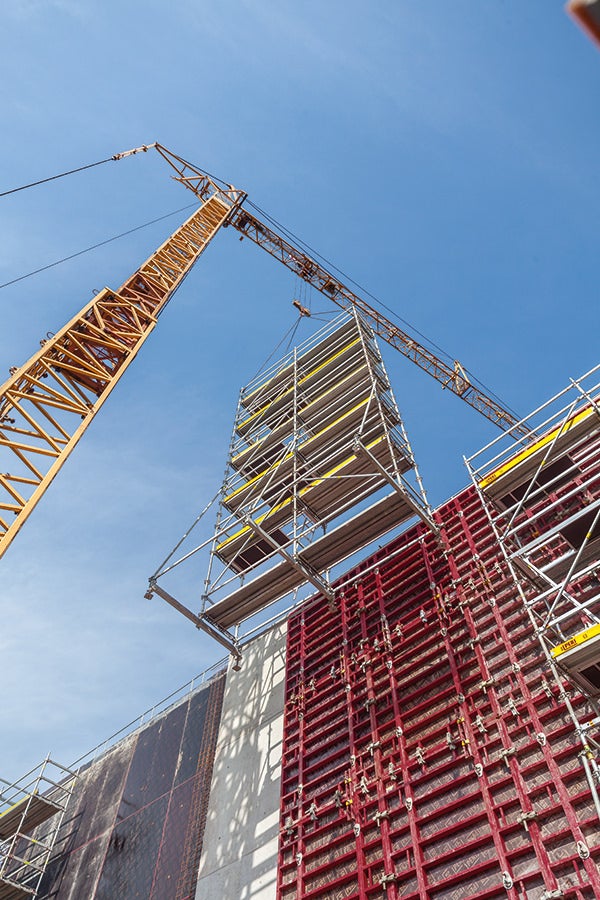

The Bracing Scaffold can be moved by crane with standard shafts.
-
Safe erection
The advance guardrail guarantees safe erection.
-
Stable

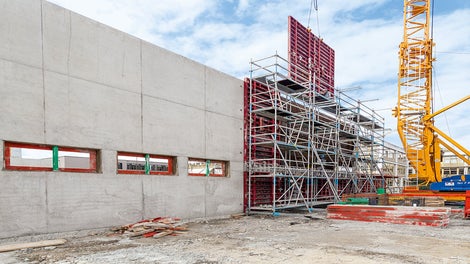

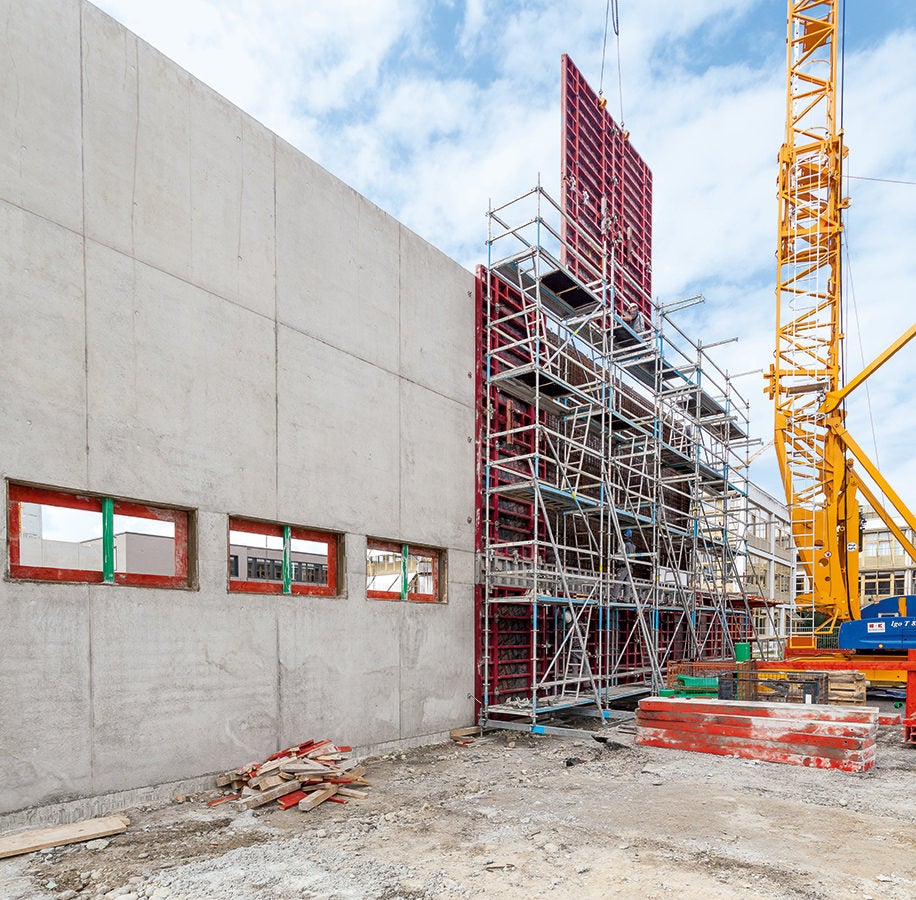

Ballast and anchors are not required.
Product Data Sheet
Scaffold type
Reinforcement Framework
Dimensions
Standing height: Up to 10.80 m,
Total lengths: Up to a maximum of 9 m
Type of use
Working scaffold up to load class 3 (200kg/m²)
Width class
SW 03, SW 06, SW 09, SW 12, SW 15
Load class
LK 1, LK 2, LK 3, LK 4, LK 5, LK 6
Design width
75cm, 100cm
Body heights
Up to 10.80 meters
Scaffolding grid
Metric
Type of pavement
Steel
Structure principle
Advance assembly in the system according to TRBS 2121-1 possible
Body length
1 field, 2 fields, 3 fields
Field length
150 cm, 200 cm, 250 cm, 300 cm
Base width
150 cm, 200 cm
Compatible with
PERI UP scaffolding kit
