PERI UP Flex in action
-
Watch the video to find out more
-
Safe working conditions
Working platforms are completely covered without any gaps and simple conversions are made to accommodate any obstructions.
The perforated surface of the decking provides a high level of safety, making the system non-slip.

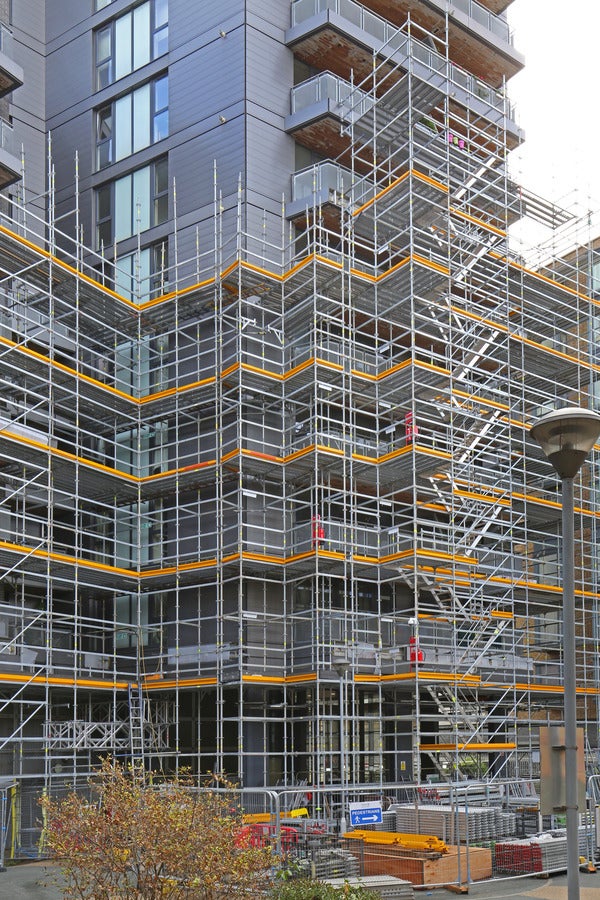

Project: Payne Road
-
High load-bearing capacity
Due to the special node rigidity and enormous loadability of the connection.

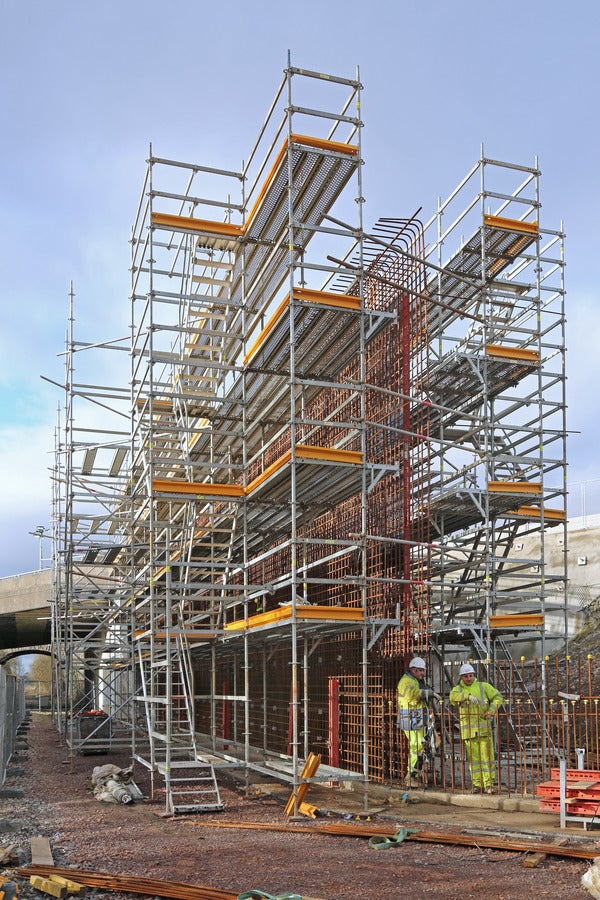

Project: Heads of the Valley
-
Easy to install
Quickly and safely mounted with the “gravity lock” and self-locking decks.

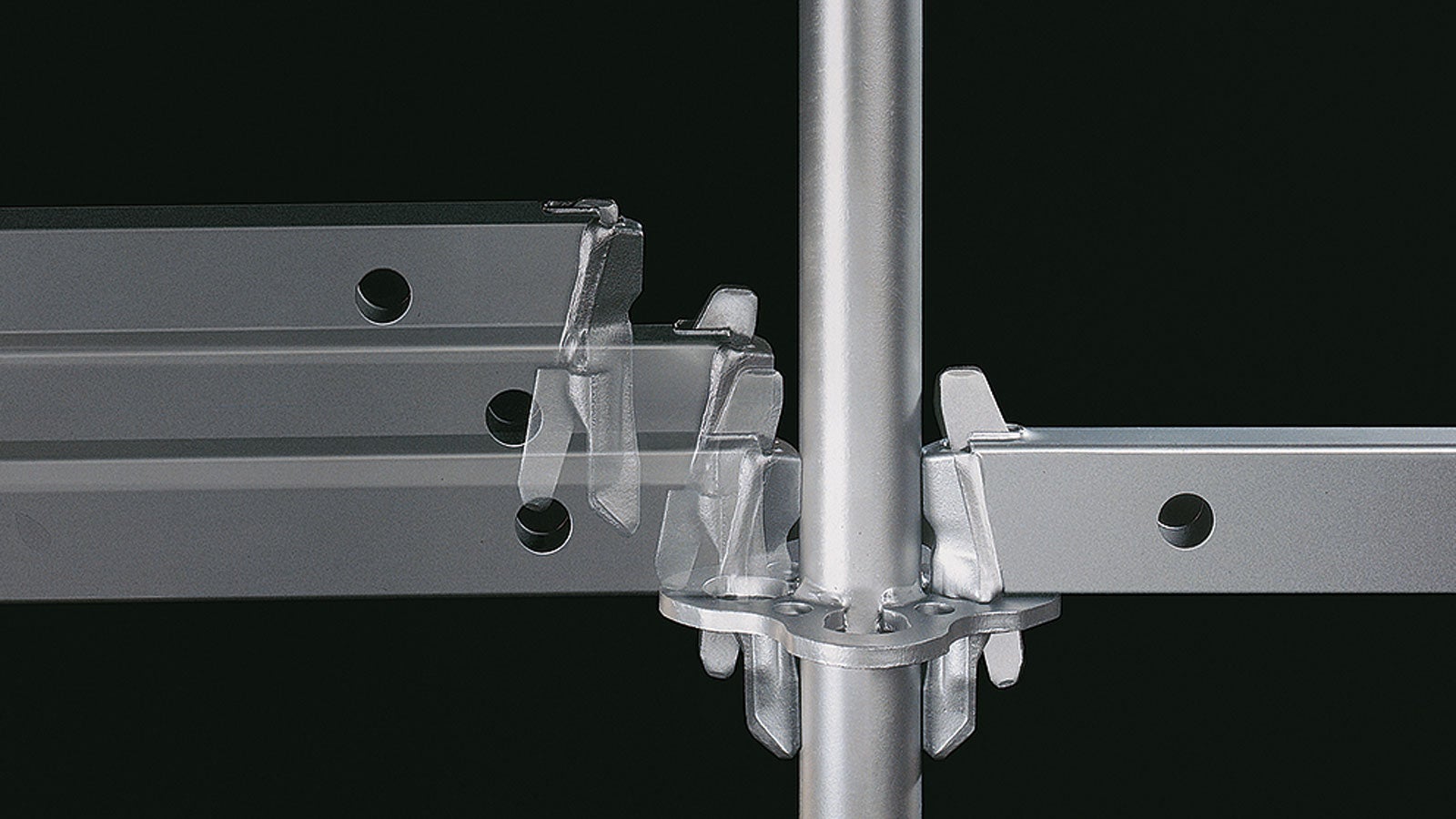

The gravity lock facilitates fast assembly of the modular scaffolding: by inserting the wedge head into the rosette, the wedge drops by force of gravity into the hole and then locks.
Product Data Sheet
Scaffold type
Industrial Scaffolding
Type of use
Working scaffold, protective scaffold
Load class
LK 1, LK 2, LK 3, LK 4, LK 5, LK 6
Scaffolding grid
Metric for field lengths and widths for easy adjustments; 25 cm grid
Material
Steel
Approval
DIN EN 12810 and 12811; load class 1 to 4 (0.75 kN/m² - 3.00 kN/m²); Load class 1 to 6 (0.75 kN/m² - 6.00 kN/m²)
Load
Allowed bearing strength: Maximum load capacity: steel deck 25 x 250 cm: ≤ LK5 | Steel deck 25 x 300 cm: ≤ LK4
Compatible with
PERI UP scaffolding construction kit, VARIOKIT engineering construction kit
