BECOSTOP
BECOSTOP is designed and manufactured in Germany, using the highest quality materials to give contractors and specifiers a cost effecting and time-saving solution.
BECOSTOP is key profiled according to the EC2 and can eliminate the need to install couplers into the structure by providing full reinforcement continuity. Furthermore, BECOSTOP can be incorporated with Waterstop solutions integral to the unit, or have facilities designed into the unit to allow for easy installation of any specified waterproofing system. BECOSTOP is a truly bespoke cost and labour-saving solution for modern construction projects when forming day joints for all slab depths.
Advantages:
- Fast and easy installation
- Ready to install from pallet
- Self-supporting up to 1500mm
- Up to 50% reduction in pour pressure
- No extra surface preparation needed
- Designed bespoke for project
BECOSTOP products

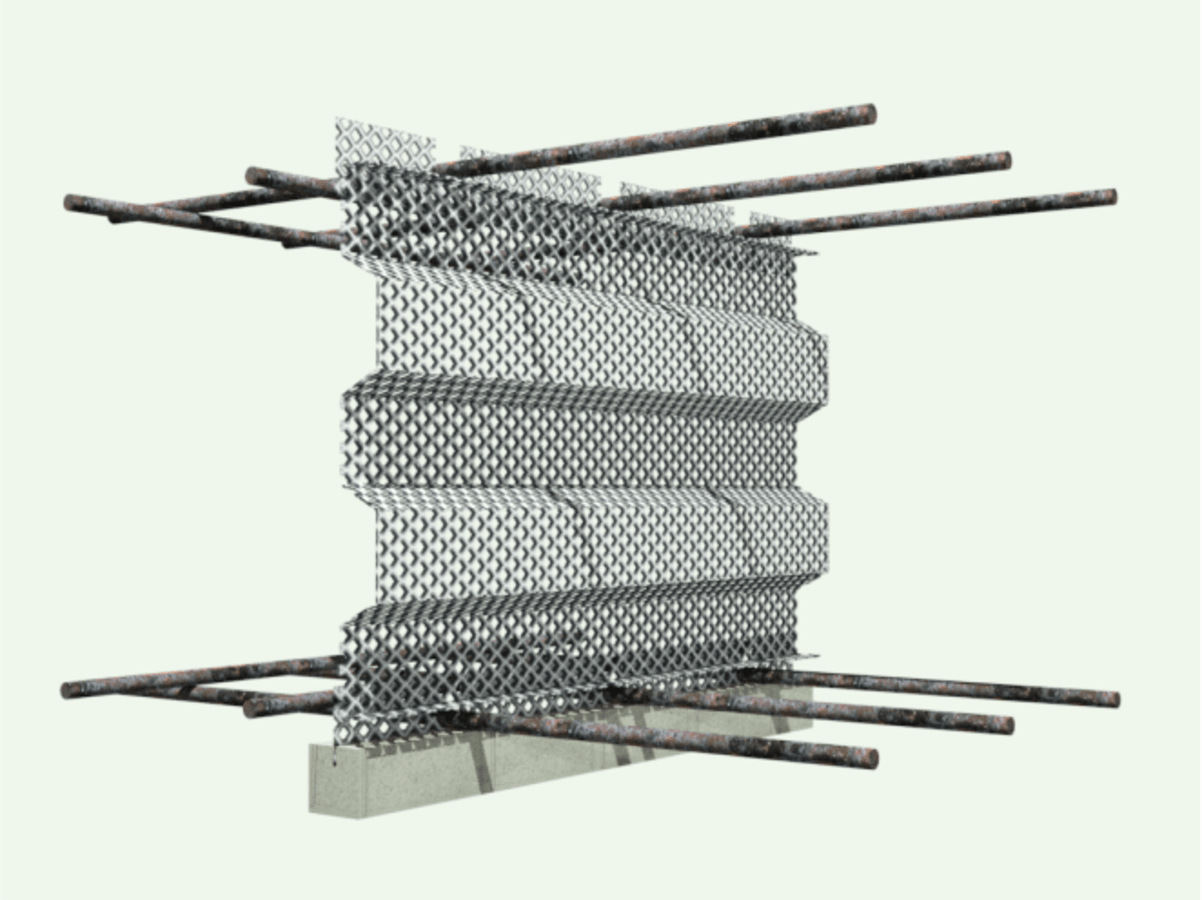

Scroll through the standard units below.BECOSTOP AS-V is a shuttering unit designed for the installation of construction joints. Applications include construction joints in base slabs, walls and floor slabs.
Advantages:
- Self-supporting up to 300mm
- Easy installation
- Key-profiled formwork surface (key-profiled according to DIN EN1992-1-1; EC2 from H=240 mm)

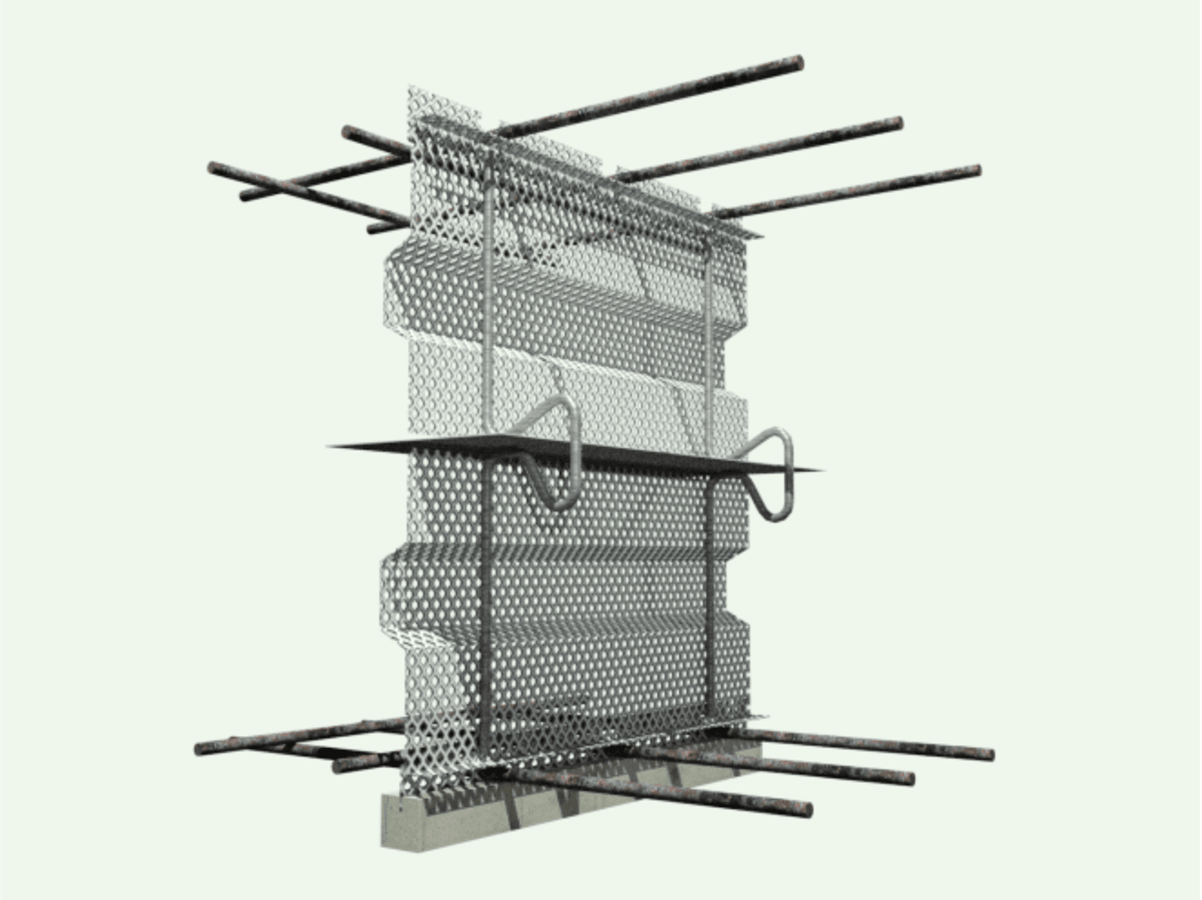

BECOSTOP ASF-V is a shuttering unit with integrated fixing clips designed for the installation of construction joints which also require metal waterstops. Applications include construction joints in base and floor slabs and walls. In combination with a suitable metal waterstop, it can also be used for waterproof concrete constructions. Integrated intake for metal waterstops make the installation of metal waterstops quick and easy.
Advantages:
- Free choice of metal waterstop
- Easy installation
- Key-profiled formwork surface (key-profiled acc. to EC2 from H= 240 mm)

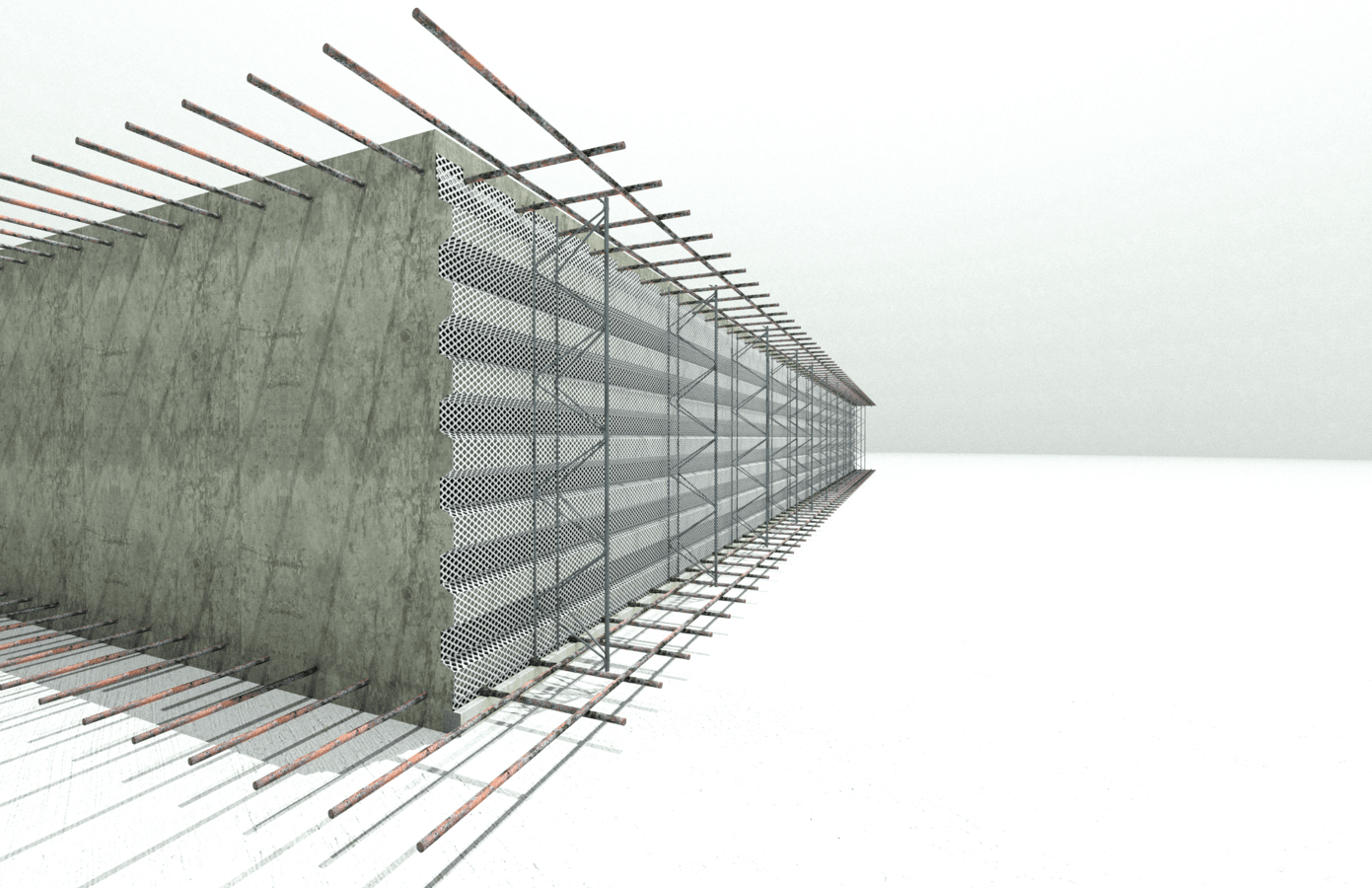

BECOSTOP AS-VG Plus is a shuttering unit braced with lattice girders for creating construction joints in base slabs.
Advantages:
- Braced with lattice girders
- Self supporting up to 1500mm
- Easy installation
- Key-profiled formwork surface (key-profi led acc. to EC2)

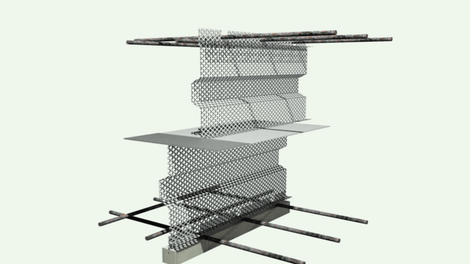

BECOSTOP ASF-V Metal-Waterstop is a shuttering unit for creating construction joints, including welded-in blank metal waterstop. The area of application includes the construction joints in base slabs, walls and floor slabs in waterproof concrete constructions.
Advantages:
- Ready to install
- Easy installation
- Key-profiled formwork surface (key-profiled acc. to EC2 from H= 240 mm)

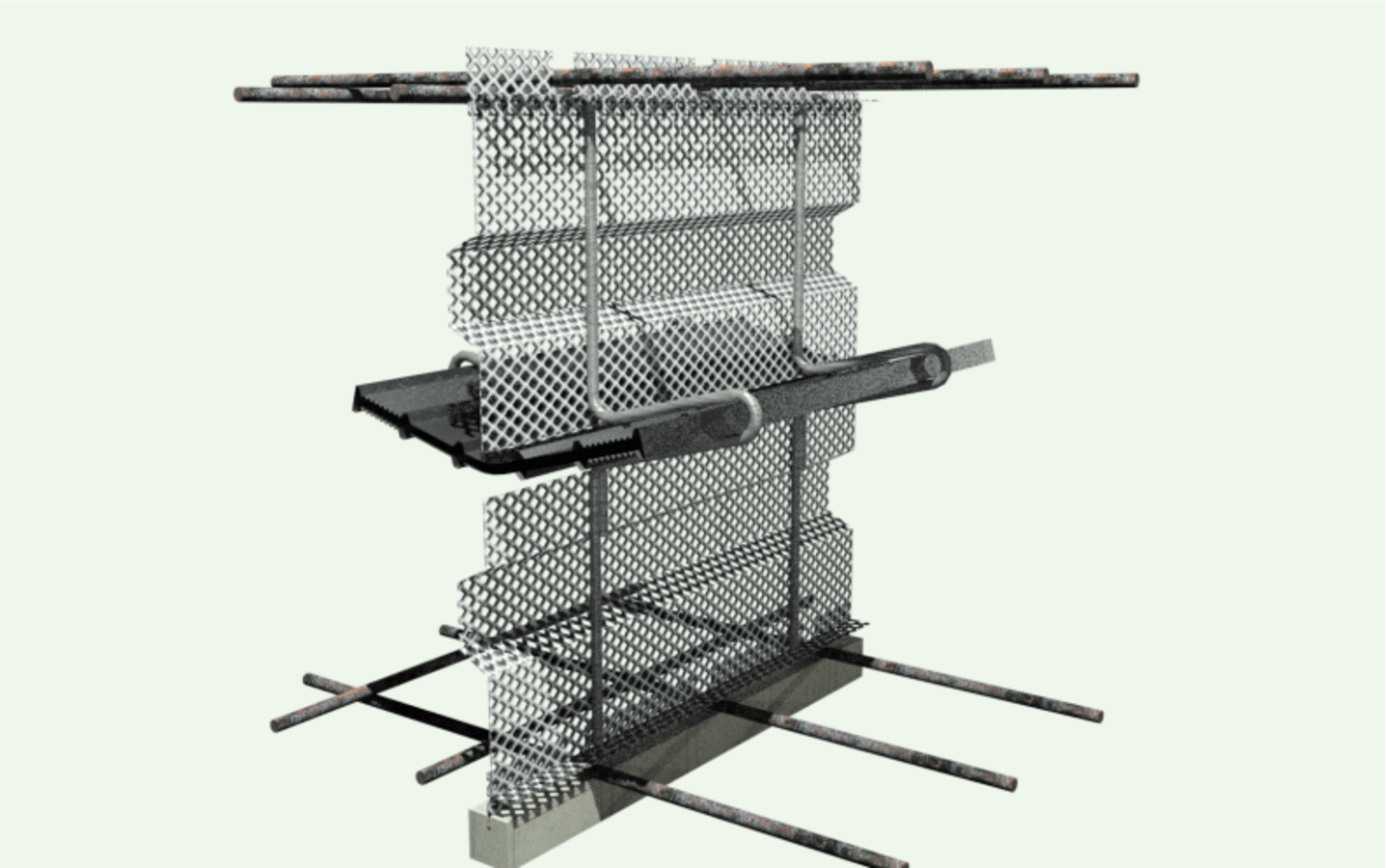

BECOSTOP ASF-V PVC-Waterstop is a shuttering unit with integrated fixing clips designed for the installation in construction joints which also require pvc waterstops. Applications include construction joints in base slabs, walls and floor slabs. In combination with a suitable PVC waterstop, it can also be used for waterproof concrete constructions. Integrated intake for PVC waterstops makes the installation of PVC waterstops quick and easy.
Advantages:
- Free choice of PVC waterstop
- Easy installation
- Key-profiled formwork surface (key-profiled acc. to EC2)

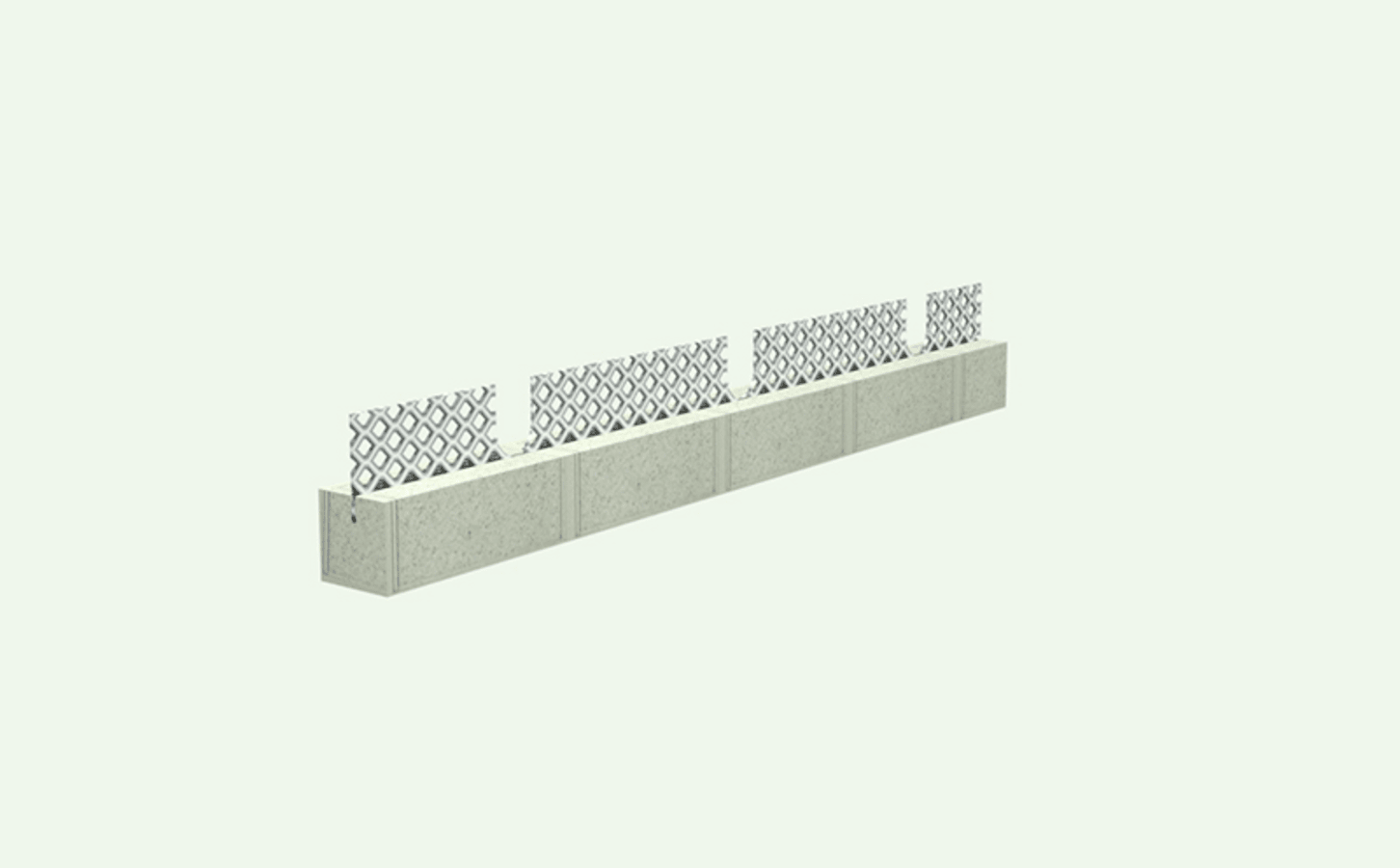

BECOSPACE is a fibre concrete spacer strip with expanded metal strips to insert as leak protection which greatly reduces concrete flow between the reinforcement around the construction joint.
Advantages:
- Stable
- Quick installation
- Easy adjustment at the reinforcement
- Time effective due to a reduction in subsequent rework
BECOSTOP AS-V is a shuttering unit designed for the installation of construction joints. Applications include construction joints in base slabs, walls and floor slabs.
Advantages:
- Self-supporting up to 300mm
- Easy installation
- Key-profiled formwork surface (key-profiled according to DIN EN1992-1-1; EC2 from H=240 mm)
BECOSTOP ASF-V is a shuttering unit with integrated fixing clips designed for the installation of construction joints which also require metal waterstops. Applications include construction joints in base and floor slabs and walls. In combination with a suitable metal waterstop, it can also be used for waterproof concrete constructions. Integrated intake for metal waterstops make the installation of metal waterstops quick and easy.
Advantages:
- Free choice of metal waterstop
- Easy installation
- Key-profiled formwork surface (key-profiled acc. to EC2 from H= 240 mm)
BECOSTOP AS-VG Plus is a shuttering unit braced with lattice girders for creating construction joints in base slabs.
Advantages:
- Braced with lattice girders
- Self supporting up to 1500mm
- Easy installation
- Key-profiled formwork surface (key-profi led acc. to EC2)
BECOSTOP ASF-V Metal-Waterstop is a shuttering unit for creating construction joints, including welded-in blank metal waterstop. The area of application includes the construction joints in base slabs, walls and floor slabs in waterproof concrete constructions.
Advantages:
- Ready to install
- Easy installation
- Key-profiled formwork surface (key-profiled acc. to EC2 from H= 240 mm)
BECOSTOP ASF-V PVC-Waterstop is a shuttering unit with integrated fixing clips designed for the installation in construction joints which also require pvc waterstops. Applications include construction joints in base slabs, walls and floor slabs. In combination with a suitable PVC waterstop, it can also be used for waterproof concrete constructions. Integrated intake for PVC waterstops makes the installation of PVC waterstops quick and easy.
Advantages:
- Free choice of PVC waterstop
- Easy installation
- Key-profiled formwork surface (key-profiled acc. to EC2)
BECOSPACE is a fibre concrete spacer strip with expanded metal strips to insert as leak protection which greatly reduces concrete flow between the reinforcement around the construction joint.
Advantages:
- Stable
- Quick installation
- Easy adjustment at the reinforcement
- Time effective due to a reduction in subsequent rework
